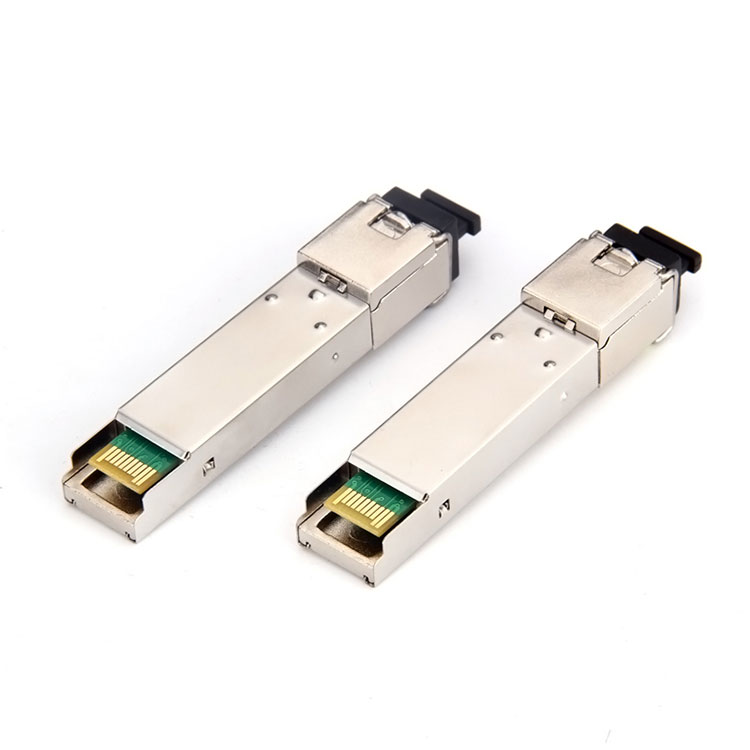

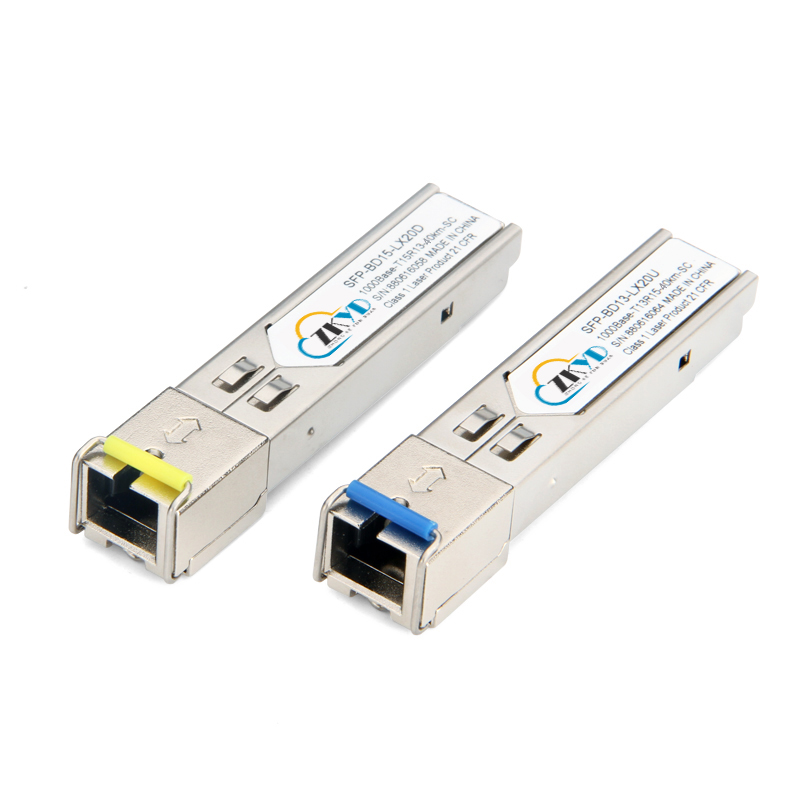

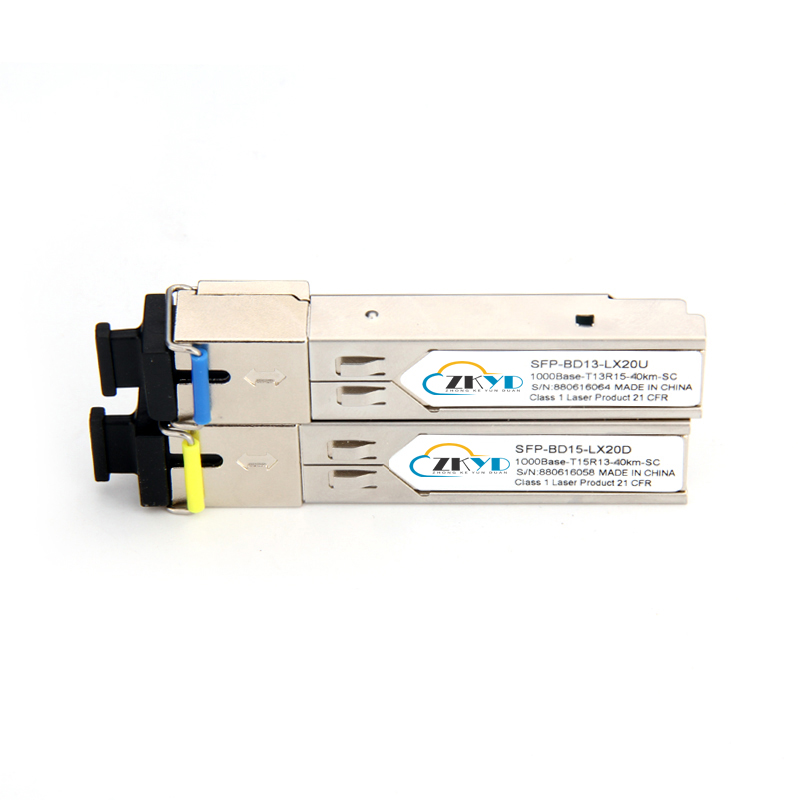

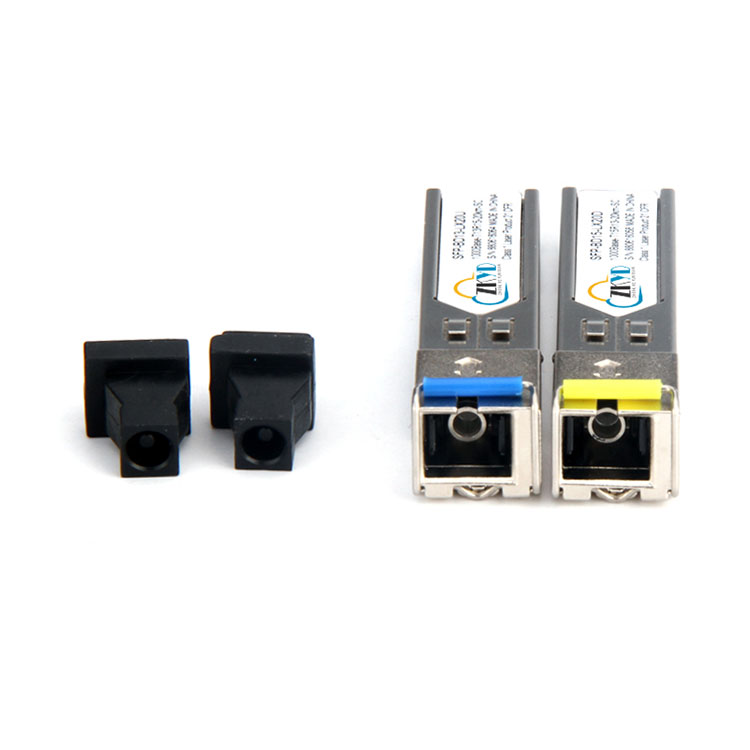

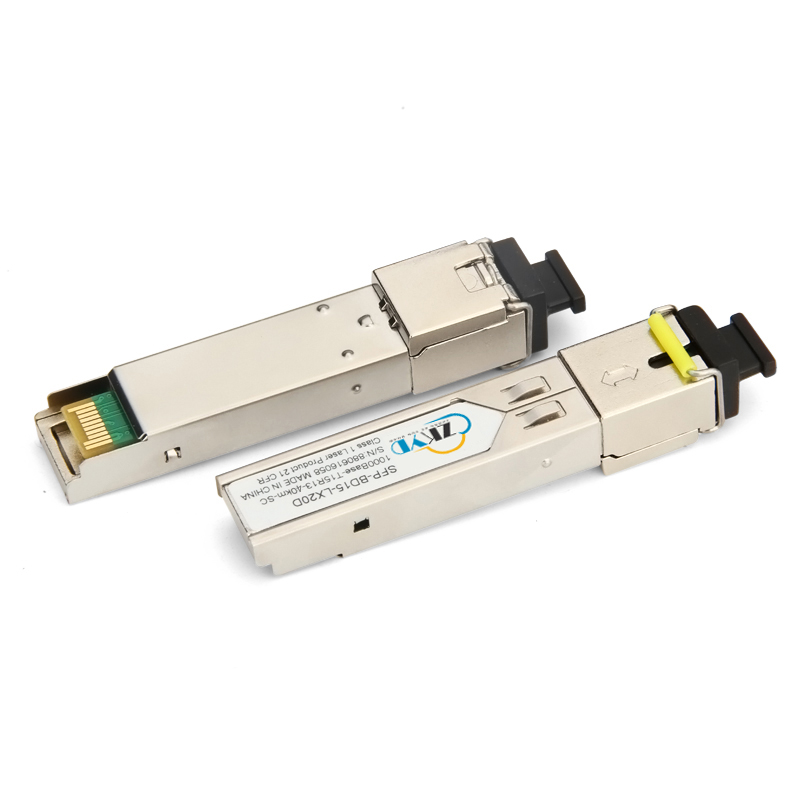

40KM 1000M SC Connector Single Fiber SFP Module

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 3km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.


Share:
Features

1.Dual data-rate of 1.25Gbps/1.063Gbps operation

2.1310nm FP laser and PIN photodetector for 3/20/30/40/60/80km transmission

3.Compliant with SFP MSA and SFF-8472 with simplex SC receptacle

4.Digital Diagnostic Monitoring: Internal Calibration or External Calibration

5.Compatible with SONET OC-24-LR-1


 Applications

1.Gigabit Ethernet

2.Fiber Channel

3.Switch to Switch interface

4.Switched backplane applications

5.Router/Server interface

6.Other optical transmission systems


Specifications
Data Rate1.25GFiber ModeSingle Mode Fiber (SMF)
Types of InterfaceSCTypes of LaserFP/DFB
Operating TemperatureStandard 0~70°C Operating Humidity0%~90% RH (non condensing)
Transmission distance3/20/30/40/60/80kmkmModes of CommunicationsSimplex
Wavelength1310nm TX/1550 nm RXConditionNew
Receiver Sensitivity<-15dBmExtinction Ratio>9dB
Saturated Optical Power-3dBmPower Consumption<3W
Weight0.024kgPower Supply+3.3V
Hot Pluggable Times200Average Output Power-9 ~ -3dBm
