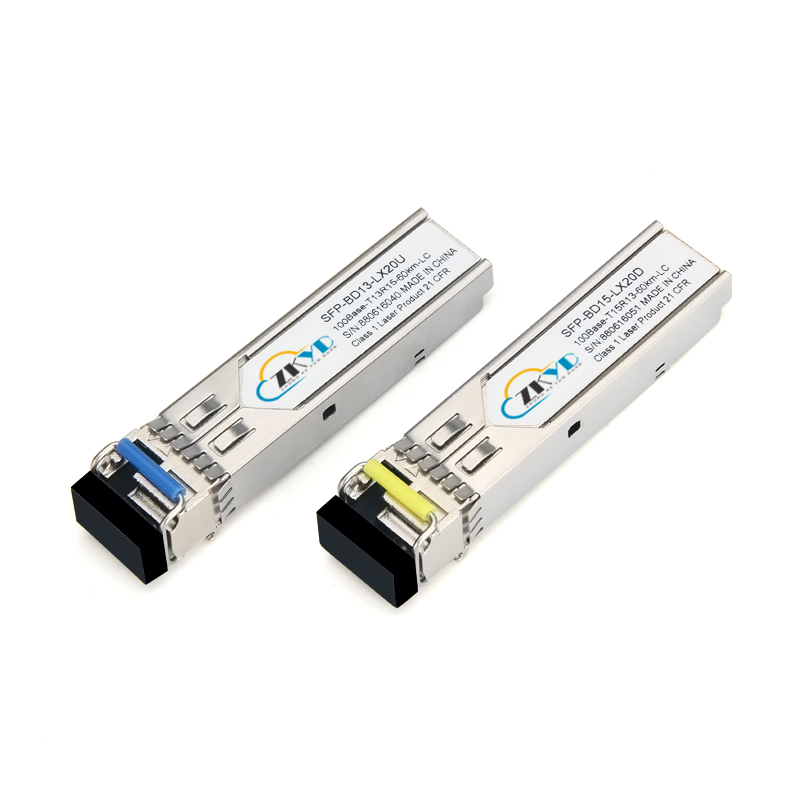

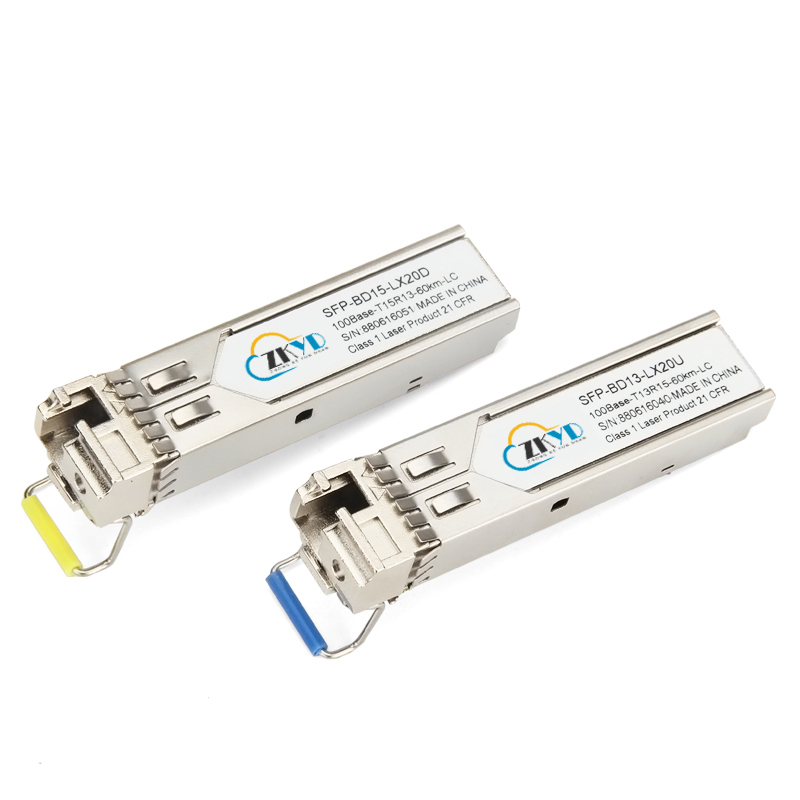

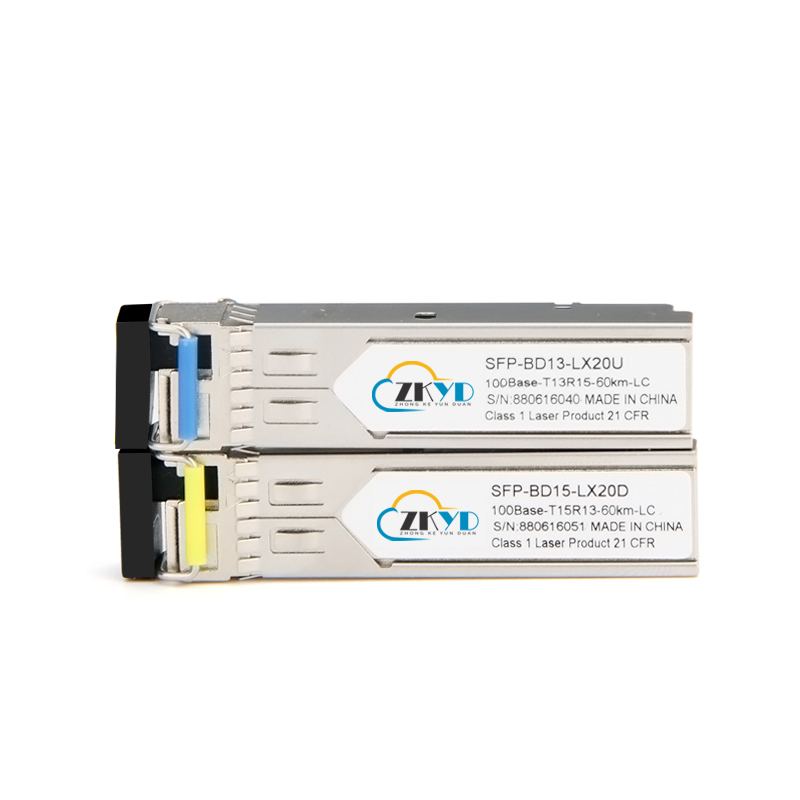

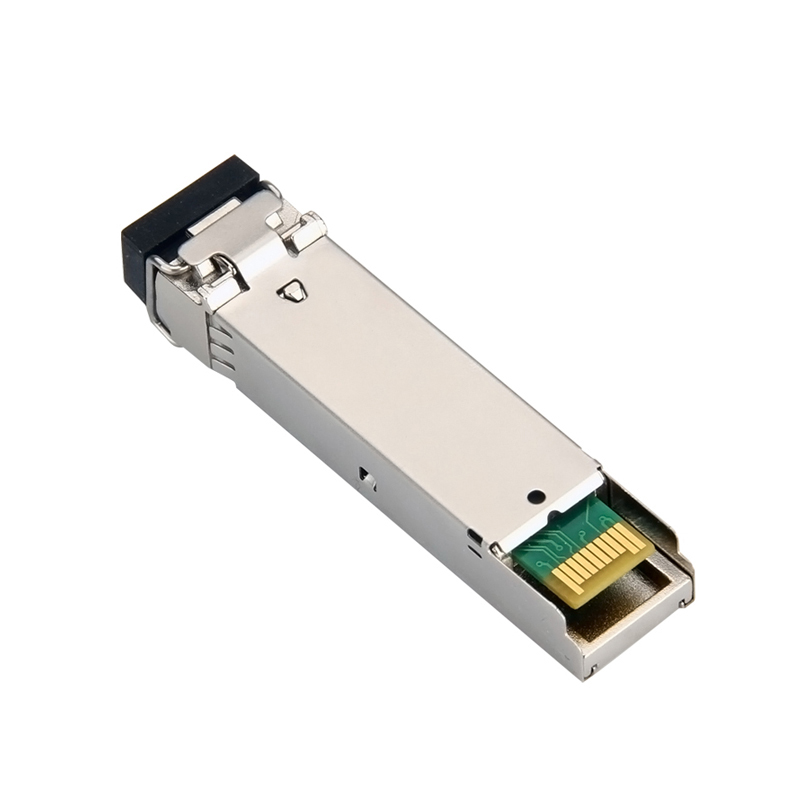

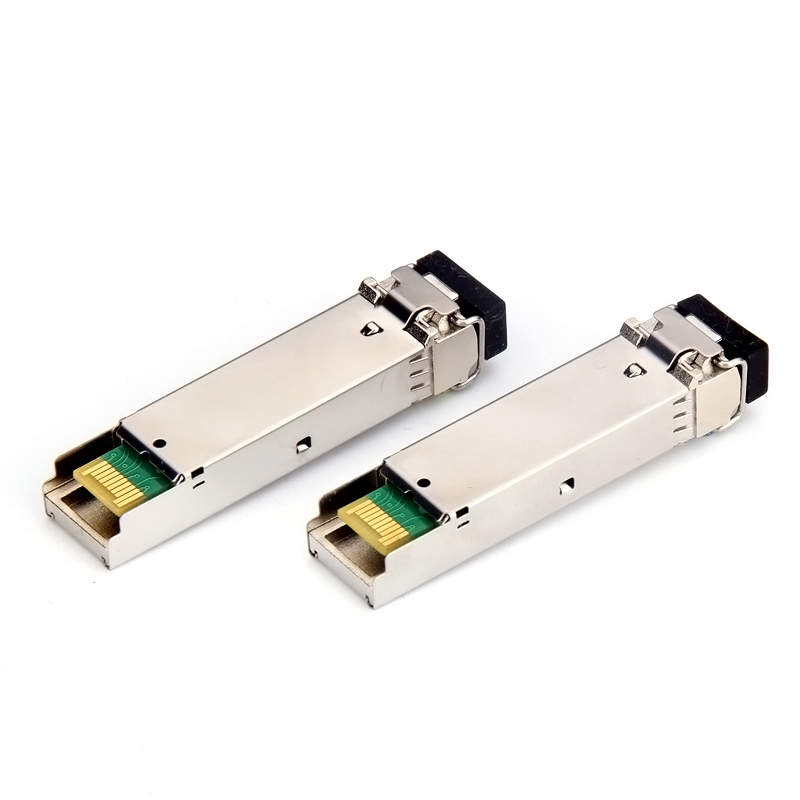

MOREThe SFP-BIDI transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 3km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
1.Transmission distance support 2/10/20/30/40/60/80/100km
2.Up to 155Mbps data-rate
3.1310nm FP laser and PIN photo detector for 2km transmission
4.Compliant with SFP MSA and SFF-8472 with simplex LC(SC)receptacle
5.Digital Diagnostic Monitoring: Internal Calibration
6.+3.3V single power supply
7.Operating case temperature:Standard: 0 to +70°C
Applications
1.Switched Backplane Applications
2.Router/Server Interface
3.Other Optical Links
4.Other optical links
Data Rate | 155M/OC-3/STM-1 | Fiber Mode | Single Mode Fiber (SMF) |
Types of Interface | LC | Types of Laser | FP/DFB |
Operating Temperature | Standard 0~70°C | Operating Humidity | 0%~90% RH (non condensing) |
Transmission distance | 2/10/20/30/40/60/80/100km | Modes of Communications | Simplex |
Wavelength | 1310nm TX/1550 nm RX | Types of Multiplexing | BIDI WDM |
Receiver Sensitivity | <-32dBm | Extinction Ratio | >9dB |
Saturated Optical Power | -3dBm | Power Consumption | <3W |
Weight | 0.024kg | Power Supply | +3.3V |
Hot Pluggable Times | 200 | Average Output Power | -14 ~ -8dBm |
