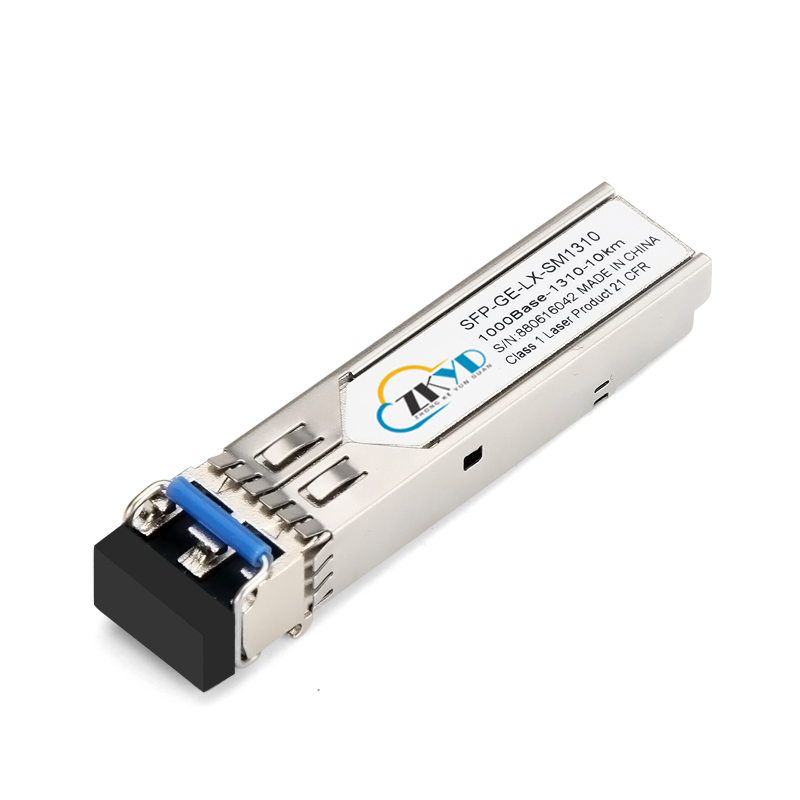

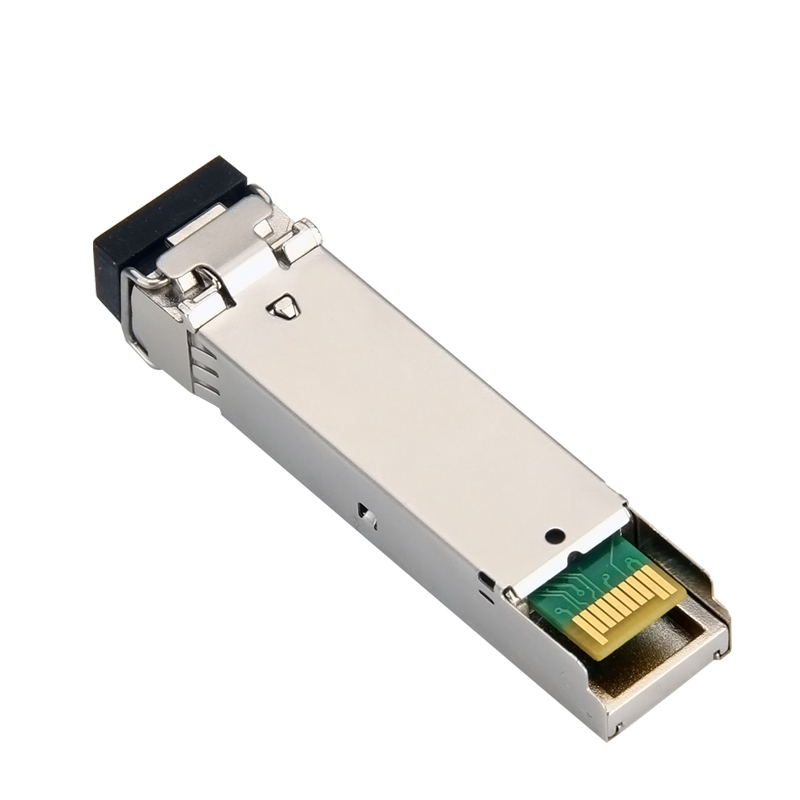

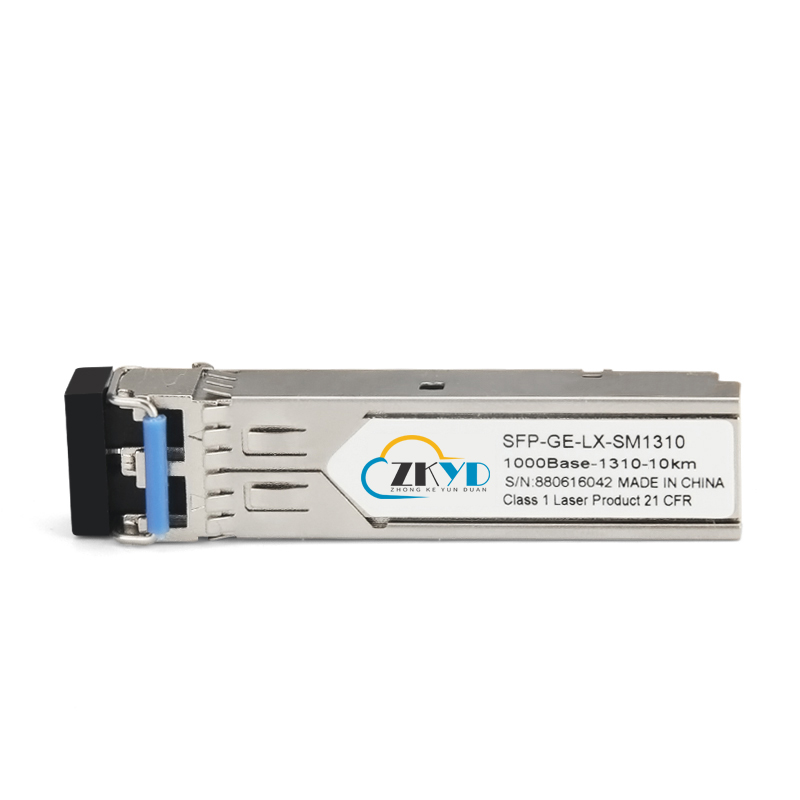

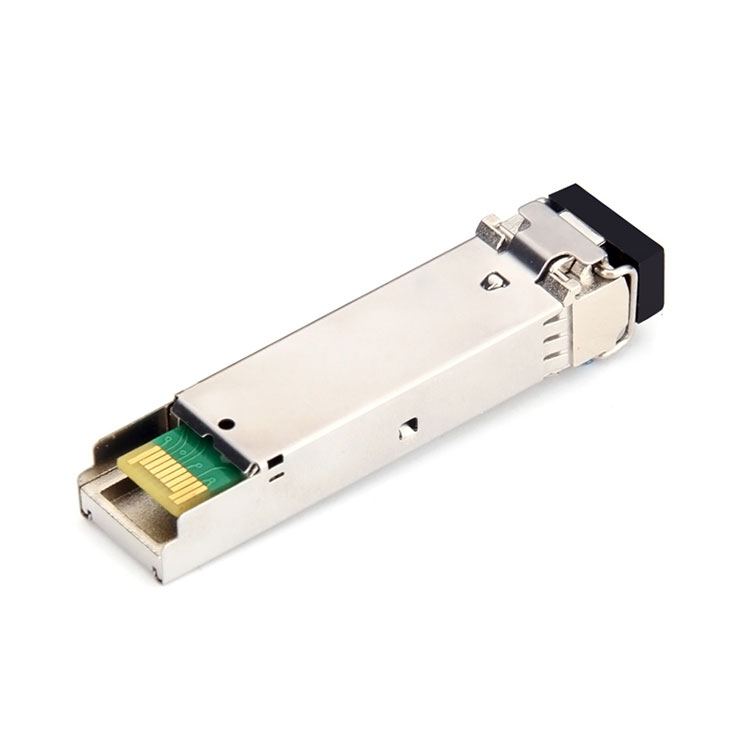

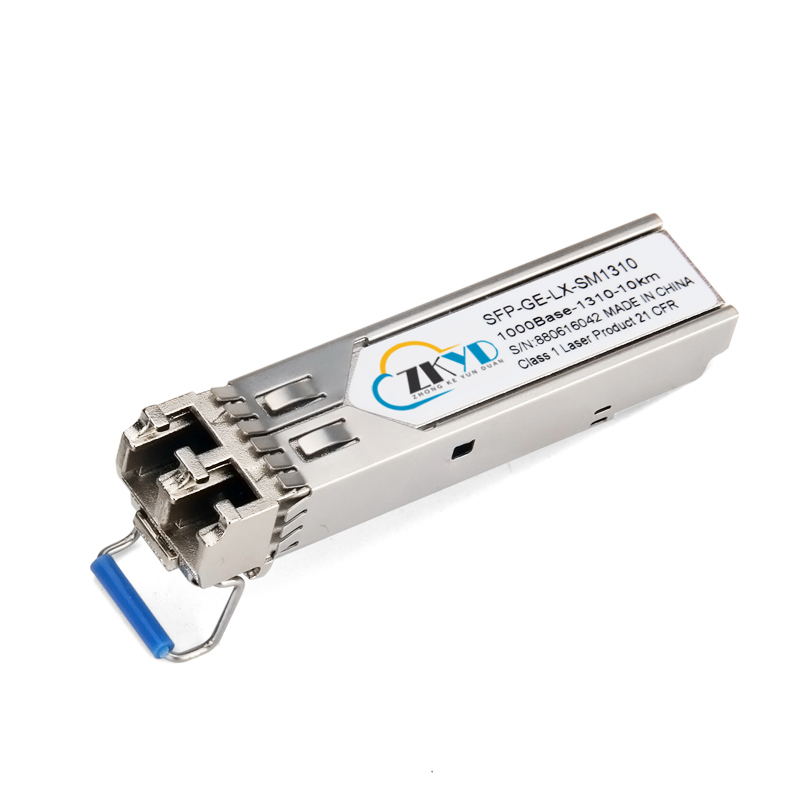

10KM 1.25G LC Connector Dual Fiber SFP Module

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.

Inquire Now Next Product

Features

1.Dual data-rate of 1.25Gbps/1.063Gbps operation

2.1310nm FP laser and PIN photodetector for 10/20/40km transmission

3.Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

4.Digital Diagnostic Monitoring:

5.Internal Calibration or External Calibration

6.Compatible with SONET OC-24-LR-1

7.Operating case temperature: Standard: 0 to +70°C, Industrial: -40 to +85°C

8.Compatible with RoHS

9.+3.3V single power supply

Applications:

1.Gigabit Ethernet

2.Fiber Channel

3.Switch to Switch interface

4.Switched backplane applications

5.Router/Server interface

6.Other optical transmission systems

Specifications

Data Rate	1.25G	Fiber Mode	Single Mode Fiber (SMF)
Types of Interface	LC	Types of Laser	FP
Operating Temperature	Standard 0~70°C	Operating Humidity	0%~90% RH (non condensing)
Transmission distance	10/20/40km	Modes of Communications	Duplex
Wavelength	1310nm	Hot Pluggable Times	200
Receiver Sensitivity	<-23dBm	Extinction Ratio	>9dB
Saturated Optical Power	-3dBm	Power Consumption	<3W
Weight	0.024kg	Power Supply	+3.3V
Hot Pluggable Times	200	Average Output Power	-9 ~ -3dBm
